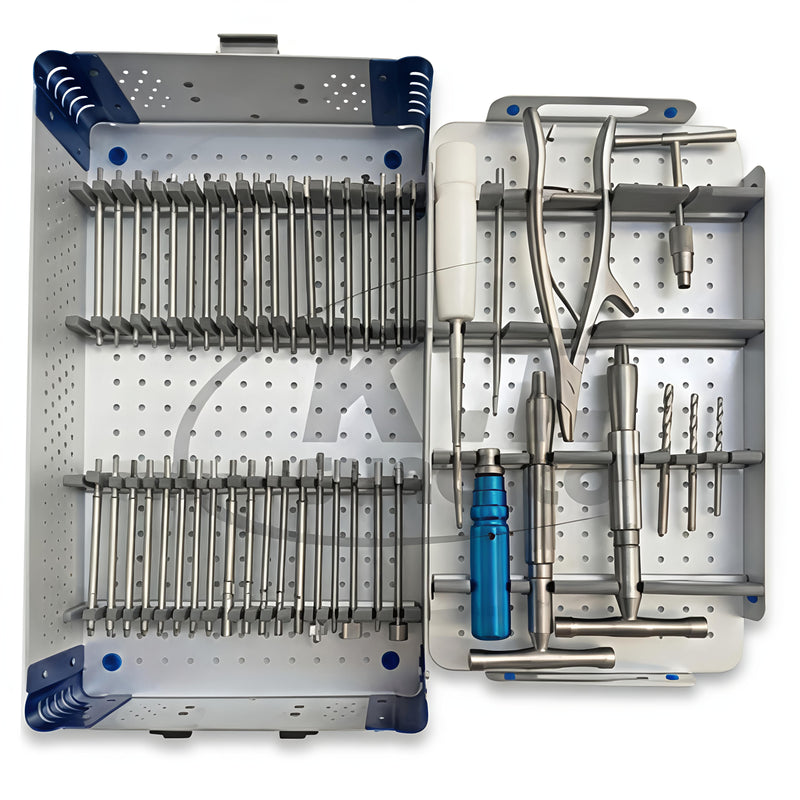

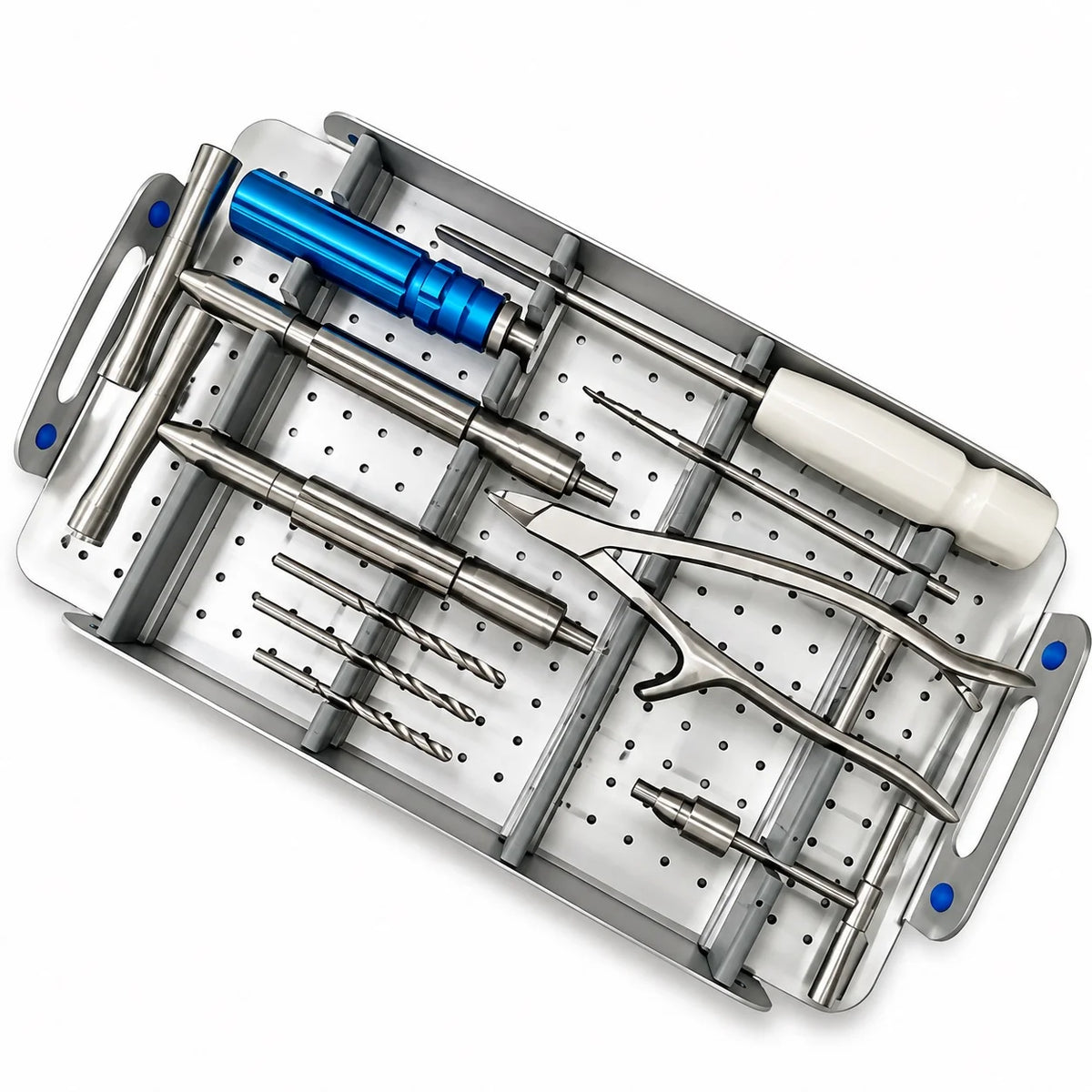

Broken Screw Removal Kit – Stainless Steel Orthopedic Surgical Instruments for Nail & Screw Extraction

The Broken Screw Removal Set with Orthopedic Nail Extractor is designed for broken screw, implant, and intramedullary nail removal during orthopedic trauma and revision procedures. Made from medical-grade stainless steel for durability, corrosion resistance, and reliable surgical performance.

Which instruments are included in the set?

• Hollow Reamers:

  • 1 x Hollow Reamer (2.7 mm)

  • 1 x Hollow Reamer (3.0 mm)

  • 1 x Hollow Reamer (5 mm)

  • 1 x Hollow Reamer (6.5 mm)

  • 1 x Hollow Reamer (8 mm)

  • 1 x Hollow Reamer (10 mm)

• Extraction Bolts & Screws:

  • 1 x Extraction Bolt (3.5 mm)

  • 1 x Extraction Bolt (4.5 mm)

  • 1 x Extraction Bolt (6.0 mm)

  • 1 x Extraction Bolt (6.5 mm)

  • 1 x Screw Extractor (3.5 mm)

  • 1 x General Screw Extractor

  • 1 x Extraction Screw Hexagonal (2.5 mm conical)

  • 1 x Extraction Screw Hexagonal (3.5 mm conical)

  • 1 x Extraction Screw Hexagonal (4.0 mm conical)

• Hexagonal Screw Drivers:

  • 9 x Hexagonal Screw Drivers (Sizes: SW 1.5, SW 2.0, SW 2.5, SW 3.0, SW 3.5, SW 4.0, SW 4.5, SW 5.0, SW 5.5)

• Star Screw Drivers:

  • 6 x Star Screw Drivers (Sizes: T2.2, T2.7, T3.3, T3.8, T4.4, T5.0, T5.5)

• Square Screw Drivers:

  • 3 x Square Screw Drivers (Sizes: SW 1.1, SW 1.2, SW 1.5)

• Slotted & Phillips Screw Drivers:

  • 1 x Slotted Screwdriver (Small)

  • 1 x Slotted Screwdriver (Large)

  • 1 x Phillips Screwdriver

• Drill Bits & Special Tools:

  • 3 x High-Speed Drill Bits (43675mm, 63675mm, 83675mm)

  • 1 x Spinal Mono-Axial Pedicle Screw Driver

  • 1 x Tip Screw Driver

  • 1 x Pliers for Screw Removal

  • 1 x T-Shaped Handle Quick Coupling

  • 1 x Straight Handle Quick Coupling

  • 1 x Round Gouge (8 mm)

  • 1 x Sharp Hook

• Storage & Housing:

  • 1 x Aluminum Sterilization and Storage Box

Use

• For use by trained medical, dental, and surgical professionals only.
• Inspect every instrument before use. Do not use an instrument that is bent, cracked, or damaged, or whose joints or tips do not align properly.
• Unless stated otherwise on the product page, instruments are supplied non-sterile. Clean and sterilize them before first use.
• Use each instrument only for its intended purpose. Do not use it as a lever, chisel, or screwdriver.

Cleaning & Care

• Rinse instruments immediately after use to remove blood and debris. Do not allow them to dry with residue on the surface.
• Clean with a neutral pH detergent or enzymatic cleaner, using a soft brush or an ultrasonic cleaner. Avoid steel wool and abrasive pads.
• Avoid prolonged contact with saline, chlorine, bleach, or other harsh chemicals, as they can cause pitting and corrosion.
• Rinse thoroughly with distilled or demineralized water and dry completely before sterilizing or storing.
• Lubricate hinges and moving parts regularly with a water-soluble instrument lubricant.

Sterilization & Storage

• Sterilize by steam autoclave following your facility's validated protocol and the sterilizer manufacturer's instructions.
• Open hinged instruments (scissors, forceps, clamps) before sterilizing so steam can reach all surfaces.
• Do not mix stainless steel instruments with carbon steel or other metals during cleaning or sterilization.
• Store in a clean, dry place away from moisture and corrosive substances. Keep out of reach of children.
