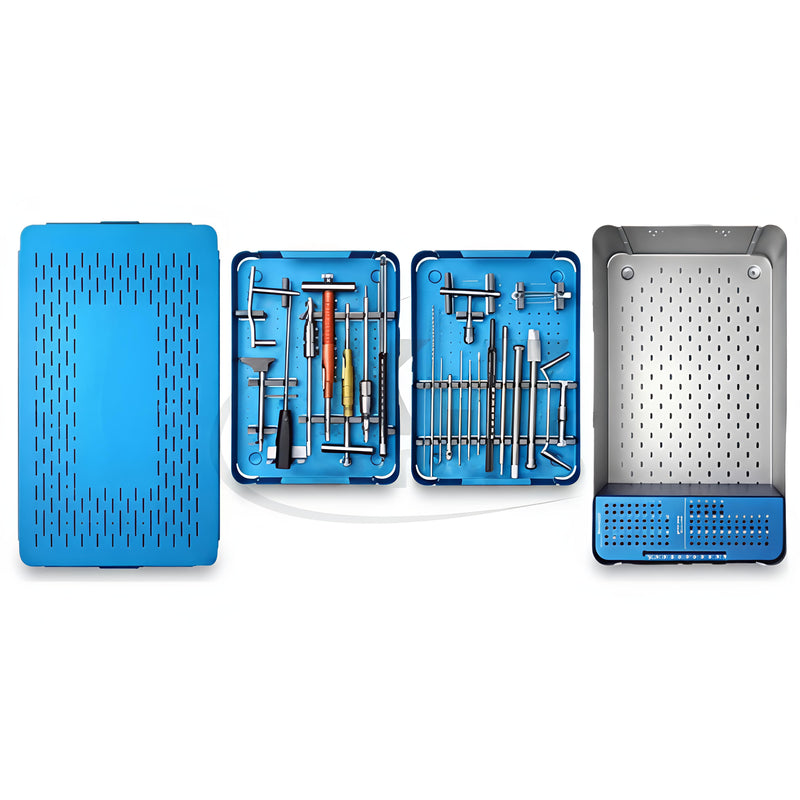

DHS & DCS Plate Orthopedic Surgical Instruments Set – Orthopedic Trauma Surgery Instruments

DHS & DCS Plate Orthopedic Surgical Instruments Set designed for orthopedic trauma procedures involving Dynamic Hip Screw (DHS) and Dynamic Condylar Screw (DCS) plate applications. A practical selection of professional orthopedic surgical instruments for hospitals, orthopedic clinics, and surgical practices.

Which instruments are included in the set?

1. Reamers, Taps & Guide Wires

• 1 × DHS Triple Reamer (Step Reamer) — Standard for 12.5 mm barrel shaft, approx. 20 cm
• 1 × DCS Bone Tap / Screw Tap — Compatible with 4.5 mm / 6.5 mm cortical and cancellous screws
• 2 × Guide Pins / Guide Wires with Threaded Tip — 2.0 mm / 2.5 mm diameter, 230–250 mm length

2. Wrenches, Screwdrivers & Handles

• 1 × T-Handle Quick Coupling / Hexagonal Screwdriver — 3.5 mm / 4.5 mm hex tip, approx. 15 cm
• 1 × DHS / DCS Wrench (Socket Wrench) — Standard hexagonal socket, approx. 18 cm
• 1 × Direct Measuring Device / Depth Gauge — Measuring range 0–100 mm

3. Guides, Sleeves & Centering Devices

• 1 × Angle Guide / Centering Sleeve — 135° / 150° for DHS & DCS
• 1 × Protection Sleeve / Drill Guide — Compatible with 3.2 mm / 4.5 mm drill bits
• 1 × T-Handle Wrench with Ratchet Mechanism — Standard orthopedic coupling

4. Drills & Case

• 2 × Spiral Drill Bits (AO Quick Coupling) — 3.2 mm and 4.5 mm diameter, 145 mm / 195 mm lengths
• 1 × Compression Screw / Lag Screw Driver Shaft — Standard coupling length
• 1 × Modular Sterilization Case with Trays — Standard multi-tier orthopedic instrument container
